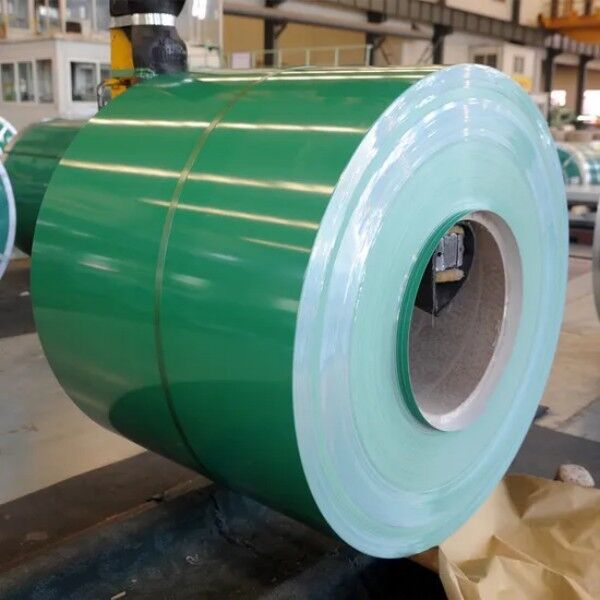

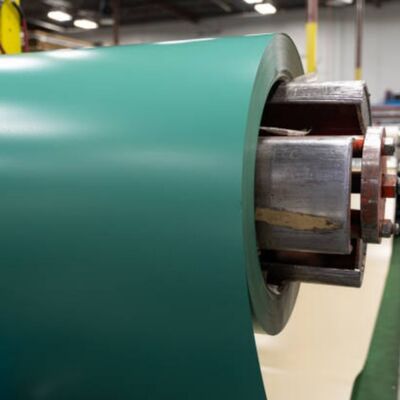

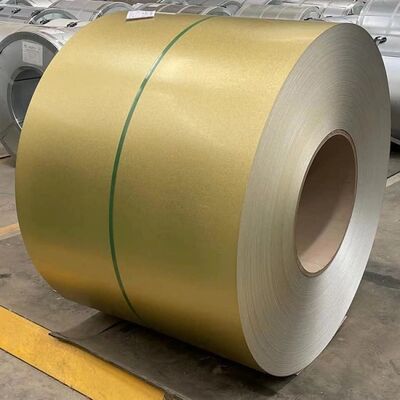

DX52D+AZ Prepainted Galvalume Steel Coil For Agricultural Structures
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | HUIYI-PPGL |
| Certificación: | SGS, BV, ISO9001 |
| Número de modelo: | CGLCC |
Pago y Envío Términos:
| Cantidad de orden mínima: | 25 toneladas cada grosor |
|---|---|
| Precio: | negotiated |
| Detalles de empaquetado: | Paquete de exportación estándar. Guente con papel impermeable. Luego película de alta densidad de ed |
| Tiempo de entrega: | 20-35 días |
| Condiciones de pago: | LC, T/T, D/P |
| Capacidad de la fuente: | 50000 toneladas por año |
|
Información detallada |
|||
| Material base: | Acero de galvalume | Recubrimiento de zinc: | 30-275G/m2 |
|---|---|---|---|
| Espesor: | 0.12-2.0 mm | Diámetro interior: | 508/610 mm |
| Espesor de pintura: | Arriba: 10-25 μm ； Atrás: 5-8 μm | Aplicación: | Industria de la publicidad, Industria de la construcción, Industria de electrodomésticos. |
| Estandarte: | EN 10169, ASTM A755 | Plazo de pago: | T/T, LC, D/P |
| Resaltar: | DX52D+AZ prepainted galvalume steel coil,PPGL steel coil for agricultural structures,prepainted galvalume steel coil with warranty |
||
Descripción de producto
Prepainted Galvalume Steel (PPGL) is a high-performance building material consisting of an aluminum-zinc alloy coated substrate with a factory-applied paint finish. This combination delivers exceptional heat reflectivity, corrosion resistance, and long-term color retention. Widely used in modern roofing, wall cladding, and architectural projects, it provides an economical and durable solution with minimal maintenance requirements.
| Brand Name | Huiyi |
|---|---|
| Substrate | Galvalume (55% Al-43.4% Zn-1.6% Si) |
| Thickness range | 0.12mm - 2mm |
| Width range | 914mm - 1219mm |
| Paint | PE or PVDF or PU or SMP or HDP |
| Coil Weight | 3-8 Tons |
| Grade | DX51D+AZ, S220GD +AZ, S320GD +AZ |
| Processing Service | Roll forming, Cutting, Bending, Perforating, Welding |
- Architectural Building Systems - Widely used in roofing, wall panels and garage doors, providing durable protection against harsh weather conditions.
- Automotive Components - Commonly formed into body panels, chassis parts and exhaust systems, offering reliable corrosion resistance.
- Household Appliances - Extensively applied in refrigerators, washing machines and electrical cabinets, ensuring scratch-resistant surfaces.
- Agricultural Structures - Ideal for greenhouses, poultry houses and farm buildings, delivering long-term durability in rural environments.
To ensure optimal condition during transit, each coil receives multi-layer protection with VCI anti-rust paper, kraft paper, and PE film, plus PP edge guards and strapping. Exports use ISPM 15 certified wooden crates or pallets with clear labeling. Desiccant bags are available upon request for high-humidity regions.
