Antibacterial Coating Hygienic Prepainted Galvalume Steel Coil For Medical
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | HuiYi-PPGL |
| Certificación: | ISO,ASTM |
| Número de modelo: | CGLCC, G550 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 25mt |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Paper VCI Kraft + Película PE de 0.3 mm + Palets con estrazamiento de acero con protectores de borde |
| Tiempo de entrega: | 15-30 días |
| Condiciones de pago: | T/T, L/C, D/P |
| Capacidad de la fuente: | 5000MT/mes |
|
Información detallada |
|||
| Nombre del producto: | Acero prepintado del Galvalume | Material: | Acero de galvalume |
|---|---|---|---|
| Tamaño: | (0.3-1.2) mm × (600-1250) mm | Color: | Colores RAL |
| Resistencia a la tracción: | 270-550 MPA | Fuerza de rendimiento: | 245-495 MPA |
| Agente antibacteriano: | Tecnología de iones de plata | Resistencia a la pulverización de sal: | 1,000hrs (ASTM B117) |
Descripción de producto

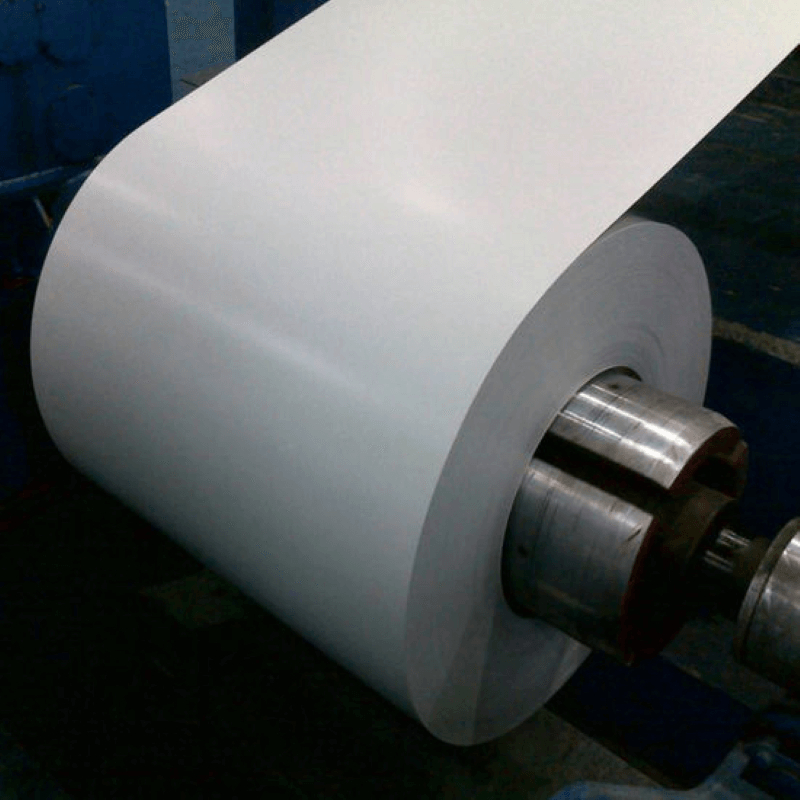

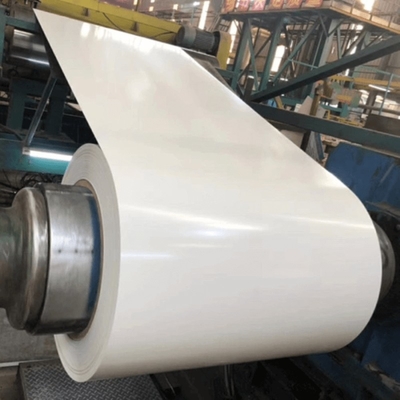

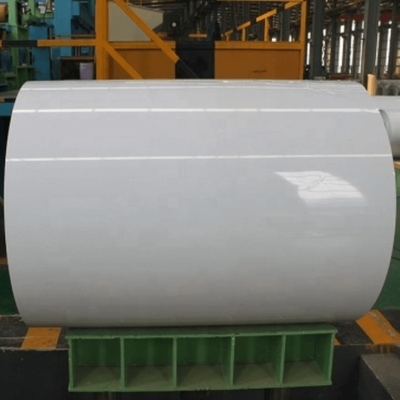

Antibacterial Coating Hygienic Prepainted Galvalume Steel Coil For Medical
Our Antibacterial Coating Hygienic Prepainted Galvalume Steel Coil is engineered for medical and high-hygiene environments, combining the superior corrosion resistance of a 55% Al-Zn alloy substrate (AZ100-AZ150) with a nano-level antibacterial coating. This coil features a durable paint system (PVDF/HDP) infused with long-acting antibacterial agents (e.g., silver or copper ions), which effectively inhibit the growth of bacteria (e.g., E. coli, S. aureus), fungi, and other pathogens. Ideal for medical facilities, laboratories, and food processing plants, it reduces cross-contamination risks while maintaining excellent formability and aesthetic appeal. Certified to ASTM A792 and ISO 9001, it offers 3-5 times longer service life than standard coated coils in corrosive environments.
| Parameter | Specification |
|---|---|
| Base Material | DX51D+AZ (ASTM A792/A792M) |
| Thickness | 0.3mm - 1.2mm (±0.03mm) |
| Width | 600mm - 1,250mm |
| Coating Weight | AZ100-AZ150 (100-150g/m²) |
| Paint System | PVDF/HDP (20-30μm) with Antibacterial Agents |
| Antibacterial Efficiency | ≥99% (vs. E. coli & S. aureus) |
| Surface Finish | Smooth/Matte (Hygienic) |
| Tensile Strength | 270-500 MPa |
| Salt Spray Resistance | 1,000hrs (ASTM B117) |
| Standards | ISO 22196 (Antibacterial Activity) |
- Medical Facilities: Wall cladding, ceiling panels, and partitions in hospitals, clinics, and cleanrooms.
- Laboratory Equipment: Cabinets, workbenches, and HVAC ducts requiring antimicrobial protection.
- Food Processing Zones: Hygienic wall systems and equipment surfaces in kitchens and food plants.
- Pharmaceutical Infrastructure: Storage units and modular structures for drug manufacturing.
- Antibacterial Agents: Silver ions (standard), copper-ion blends, or custom formulations.
- Colors: RAL/Pantone shades (e.g., white, light green) for medical aesthetics.
- Dimensions: Tailored thickness, width, and length cuts.
- Certifications: Custom testing for ISO 22196 or JIS Z 2801 standards.
- MOQ: 5 tons (custom orders), 10 tons (standard).
- Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
- Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
